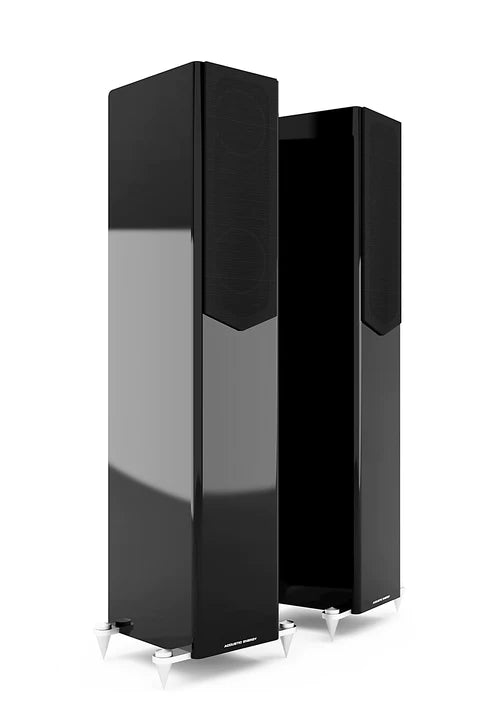

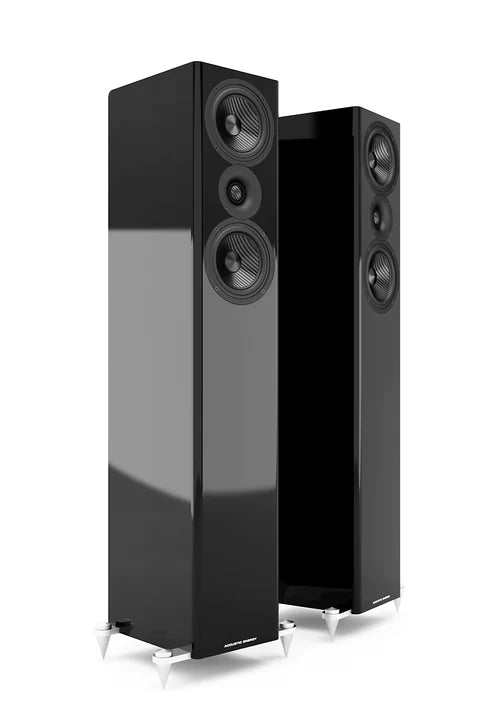

Acoustic Energy AE509 Gloss Piano Black
Couldn't load pickup availability
Show Demo
Comes with Full Warranty. Looks and Functions as NEW.
Our flagship 500 Series, comprises three models, the AE500 stand-mount, the AE509 and AE520 floor-standers and boast our newly developed carbon fibre tweeters and mid/bass drivers, designed to match the pistonic power and accuracy of our legendary ceramic aluminium drivers but with improved self-damping for a smoother, more transparent sound.
The 125mm mid/bass drivers include new oversized 35mm voice coils for low thermal compression and very high motor force factor to provide a highly dynamic yet controlled bass response. The woofer has an optimised motor and suspension system for maximum linearity and lowest distortion ensuring mid-range definition, whilst the lightweight nature of the carbon fibre cone material increases transient speed and clarity.
The AE509 is a Mid Tweeter Mid/bass (MTM) driver layout with a 2 way crossover using high voltage polypropylene film wound capacitors and air core inductors at critical locations for optimum dispersion through a smaller acoustic source size within the crossover region.
The AE520 features two dedicated 125mm mid-range drivers, three low frequency drivers and a 25mm tweeter. The two dedicated 125mm carbon fibre mid-drivers include new oversized 35mm voice coils for low thermal compression and optimum motor force factor. Both are mounted within their own dedicated sealed enclosure whilst the three dedicated low frequency drivers are reflex loaded by a large rear facing rectangular port.
These unique drivers are housed in our new Resonance Suppression Composite (RSC) cabinets evolved from the prestigious Reference Series and featuring the same constrained layer composite to greatly reduce cabinet acoustic radiation, which would otherwise colour the sound. The
cabinets are finished in high gloss Piano Black, Piano White or American Walnut wood veneer finishes. Aluminium bars/feet are supplied with the AE509s to ensure rigid floor-coupling and maximum stability whilst the stiffness of the metal structure reduces the room to speaker interaction.Offering unparalleled levels of performance, quality and value the result is a loudspeaker range with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years
AE509
The AE509 is a slim-line floor-standing loudspeaker with compact dimensions, suitable for medium to large sized rooms. Similar to the AE500 comparison, the AE509 offers higher levels of performance and finish than its 300 Series equivalent. The 500 Series features our newly developed carbon fibre tweeters and mid/bass drivers, designed to match the pistonic power and accuracy of our legendary ceramic aluminium drivers but with improved self-damping for a smoother, more transparent sound.
Offering unparalleled levels of performance, quality and value the result is an audio product with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years.
The slim-line cabinets are finished in Piano Gloss Black, Piano Gloss White or American Walnut wood veneer finishes. Solid Aluminium bars are supplied to ensure rigid floor-coupling and maximum stability, whilst the stiffness of the metal structure reduces the room to speaker interaction.
