Acoustic Energy

Acoustic Energy AE309

Regular price $1,899.00 USD
Regular price Sale price $1,899.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Acoustic Energy has returned in the USA!

That needs to be celebrated. For a limited time you will receive a free 2m or 3m pair of QED Reference XT40i Speaker Cables. A $199/$229 Value!



Building on the hugely popular and universally acclaimed 100 Series, the 300 Series raises the performance bar further still…

The 300 Series features multiple upgrades over the entry-level 100 Series, all designed to improve both audio performance and aesthetics, befitting of its more premium status. Bespoke new drive units have been designed in tandem to offer seamless tonal integration in addition to low distortion and high power handling benefits. The 28mm aluminium dome tweeter also features our WDT Wide Dispersion Technology™ and a re-designed 130mm aluminium mid-bass driver uses a ceramic aluminium sandwich cone and long throw motor system. The seamless cabinet enclosures boast an inert 18mm high density MDF material with proprietary internal bracing technology to reduce cabinet colouration. They’re finished in attractive real open grain walnut wood veneer, piano grade high gloss black or white lacquer options.

The result is a premium-finished package which offers a refined, accurate and above all, enjoyable musical experience. Embodying all the qualities Acoustic Energy are famous for… and designed for the love of music.

AE309

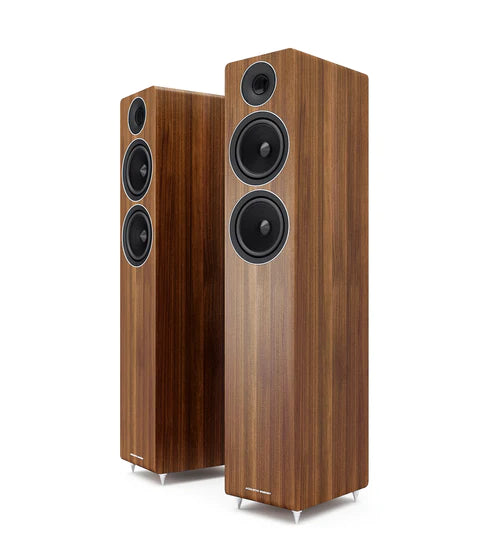

The AE309 is a slim-line floor-standing loudspeaker with compact dimensions, suitable for medium to large sized rooms. Similar to the AE300 comparison, the AE309 offers higher levels of performance and finish than its 100 Series equivalent.

The AE309 uses two latest generation 130mm mid-bass drive units. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

The inert, 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean, undistorted bass performance. The base of the cabinet is pre-loaded with an inert mass material which adds damping and reduces cabinet colouration. The mass loading coupled with 8mm floor spikes help stability and provide a solid foundation for the drive units to operate without resonances from the cabinet interacting with the floor surface.

The result of this latest drive unit technology and enclosure design is a slim-line, powerful floor-standing loudspeaker for the discerning listener when refined audio quality coupled with elegant aesthetics are paramount.

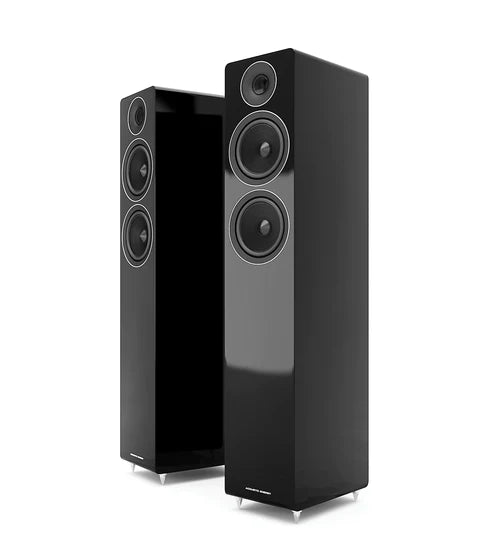

Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE309 will easily integrate within any home décor.


Specifications
Drive Unit:130mm ceramic aluminum sandwich cone
Tweeter:28mm dome
Frequency Range:38Hz – 30kHz
Sensitivity:89dB
Peak SPL:115dB
Power Handling:175w
Crossover Frequency:296Hz / 2.56kHz
Impedance:6ohms
Design:2.5-way

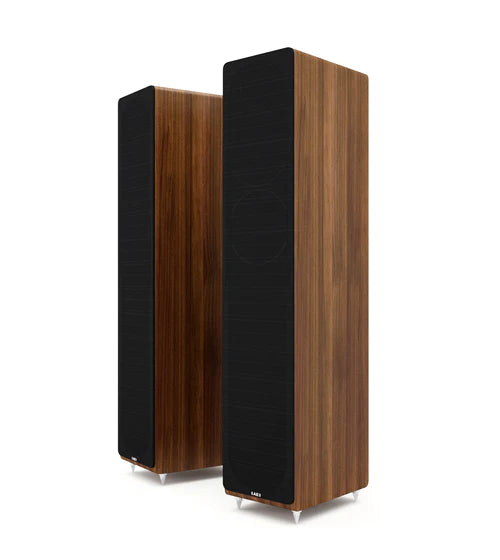

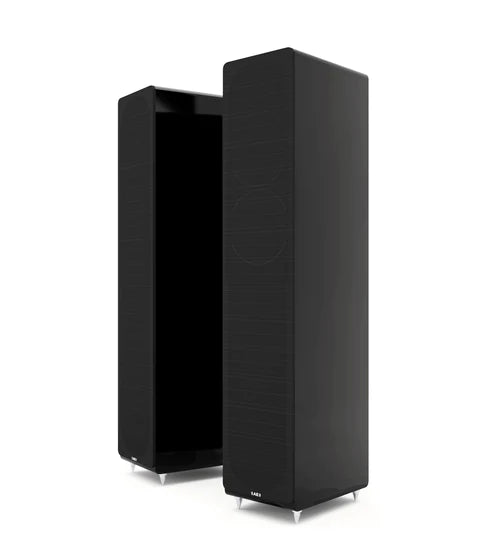

Grilles:Slim, cloth magnetic fit
Dimensions (mm):900 x 175 x 280 (HxWxD)
Weight:22kg (each)
Finishes:Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer
