NuPrime-X MCX-800AD - Card-AoIP - H16-AIP Combo

NuPrime just launched their latest top of the line NuPrime-X AV Processor and Integrated Amplifier/DAC.

Do you want flexibility combined with top class sound quality that will surpass any conventional AV receiver on the market?

NuPrime X Flagship Immersive Multi-Channel AV System
MCX-800AD with Card-AoIP-96A (8-Ch Amp + AoIP Expansion)
H16-AIP (HDMI/AoIP Processor)

Package MSRP $5,293

Special Introduction Price $4,750 (shipped and sales tax included in price)

This is a truly high-end, future-ready immersive audio system from NuPrime X — combining the MCX-800AD integrated 8-channel amplifier/DAC, the Card-AoIP-96A 16-channel Audio-over-IP (AoIP) expansion card, and the H16-AIP HDMI/AoIP processor. This is not your run-of-the-mill AV receiver — it’s an ultra-flexible, pro-level solution for demanding systems: music, immersive cinema, high-end gaming or custom installation environments.

•    Most high-end AV receivers or processors typically cost a similar amount but trail in one or more areas: single DAC chip, limited channel output, analog patching required, no network-audio routing, less headroom, higher distortion.
•    With this bundle you have: dedicated DACs per channel, high headroom amplification, network audio distribution (AoIP), HDMI immersive decoding, modular expansion, and installation-grade flexibility.
•    For serious users — custom theatre rooms, immersive music installations, high-end games, or even professional studios — the cost becomes an investment in system architecture rather than just a “better AV receiver”.
•    Because the system is modular (MCX + card + processor) you have upgrade paths: more channels, distributed zones, active speakers, etc.
•    This is not “consumer-level” gear with compromises — it sits at the convergence of audiophile and pro-audio worlds.

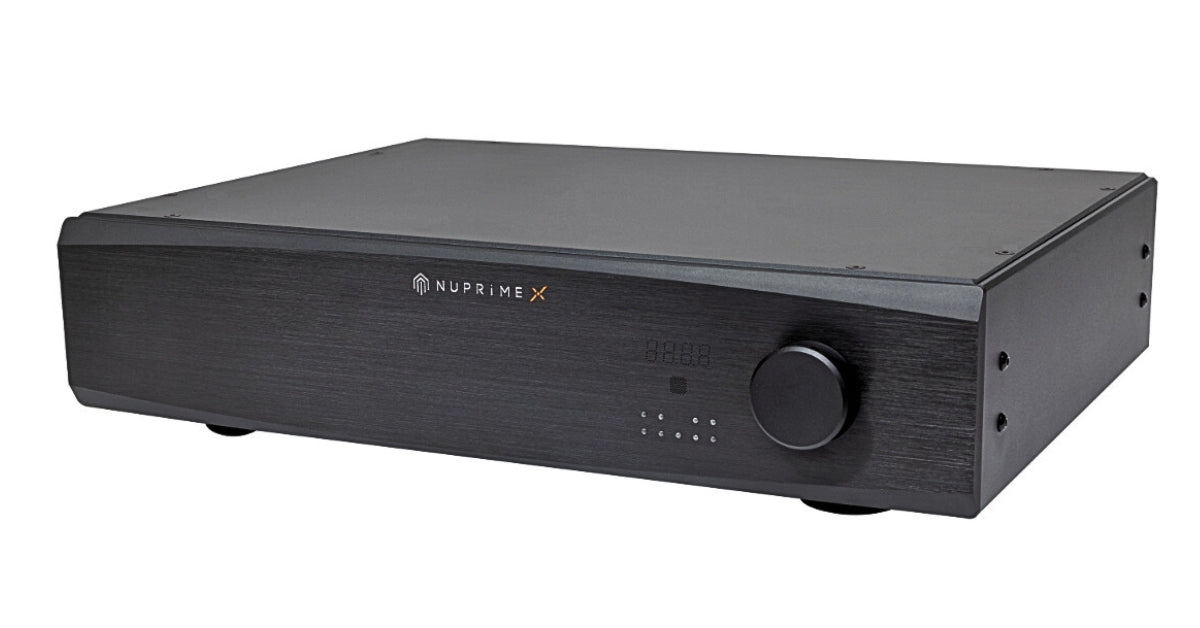

MCX-800AD

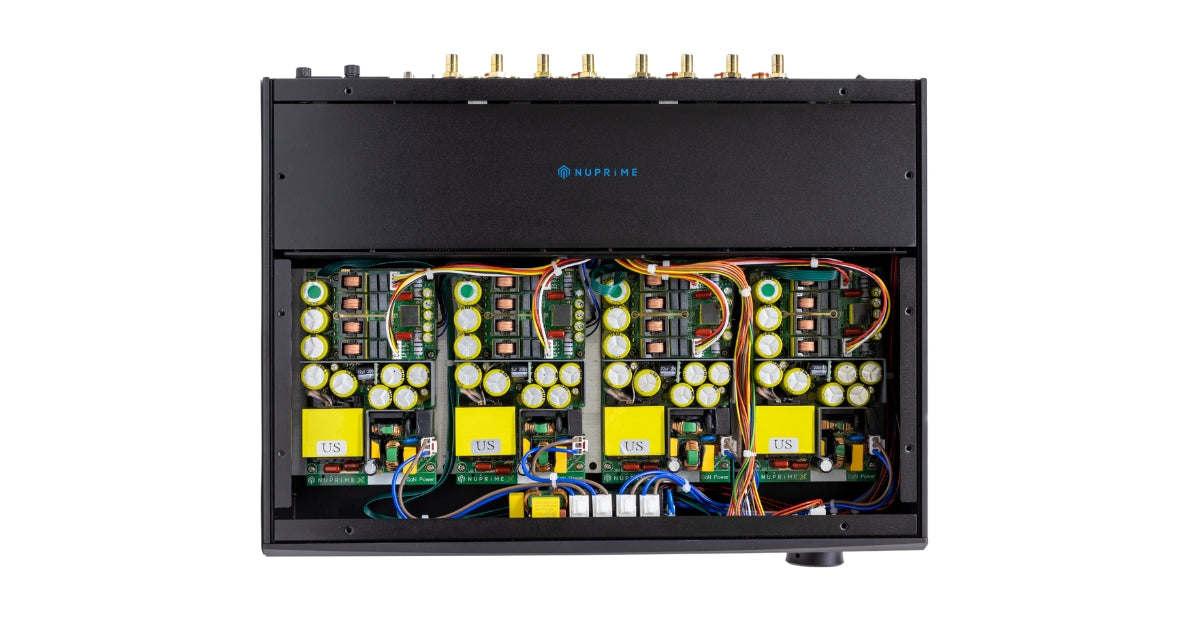

•    Built around four dedicated DAC modules and an 8-channel high-power amplifier section, the MCX-800AD handles each channel separately instead of the typical single multi-channel DAC found in many AVRs. This architecture yields significantly lower noise, improved dynamic range, and greater channel-to-channel fidelity.
•    Specs include peak power of 8 × 280 W @ 4 Ω and 8 × 170 W @ 8 Ω; RMS 8 × 220 W @ 4 Ω and 8 × 120 W @ 8 Ω.
•    Ultra-low distortion (THD+N < 0.005%) and very high signal-to-noise (>95 dB) in multichannel mode ensures audiophile-level performance even when driving demanding loads.

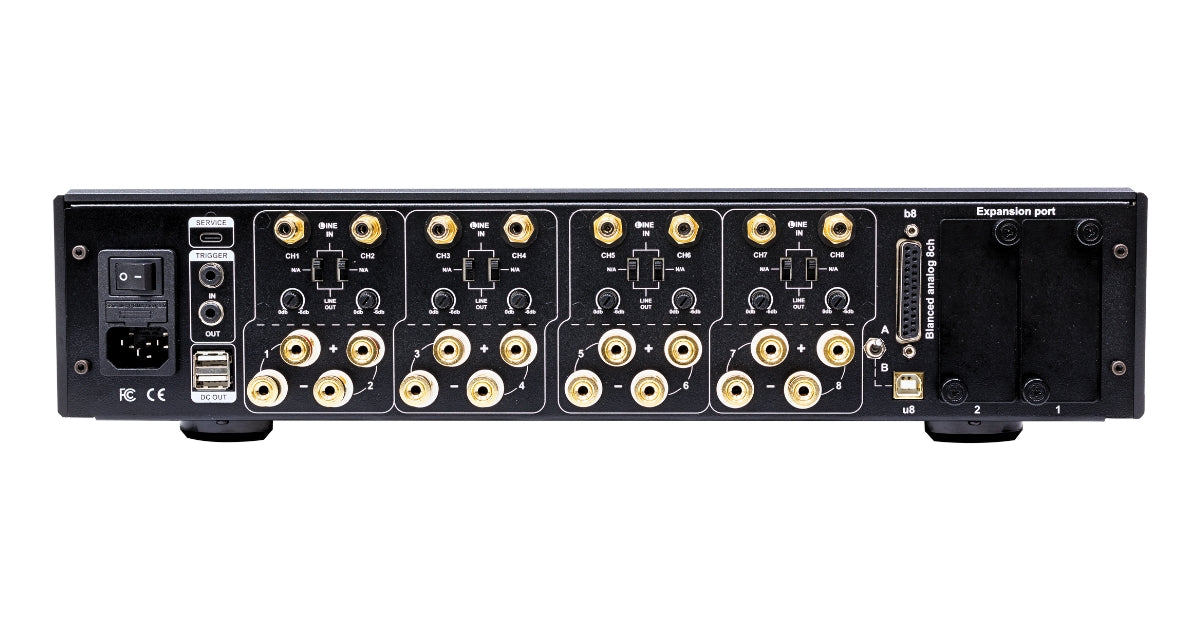

•    Designed with immersive capability in mind: multi-channel decoding, USB multi-channel input, XLR/DB-25, and plugin card architecture allow huge flexibility in custom installations.
•    In short: you’re getting a pro-grade multi-channel amplifier/DAC with the build-quality, headroom and fidelity that separates premium systems from typical AV gear.

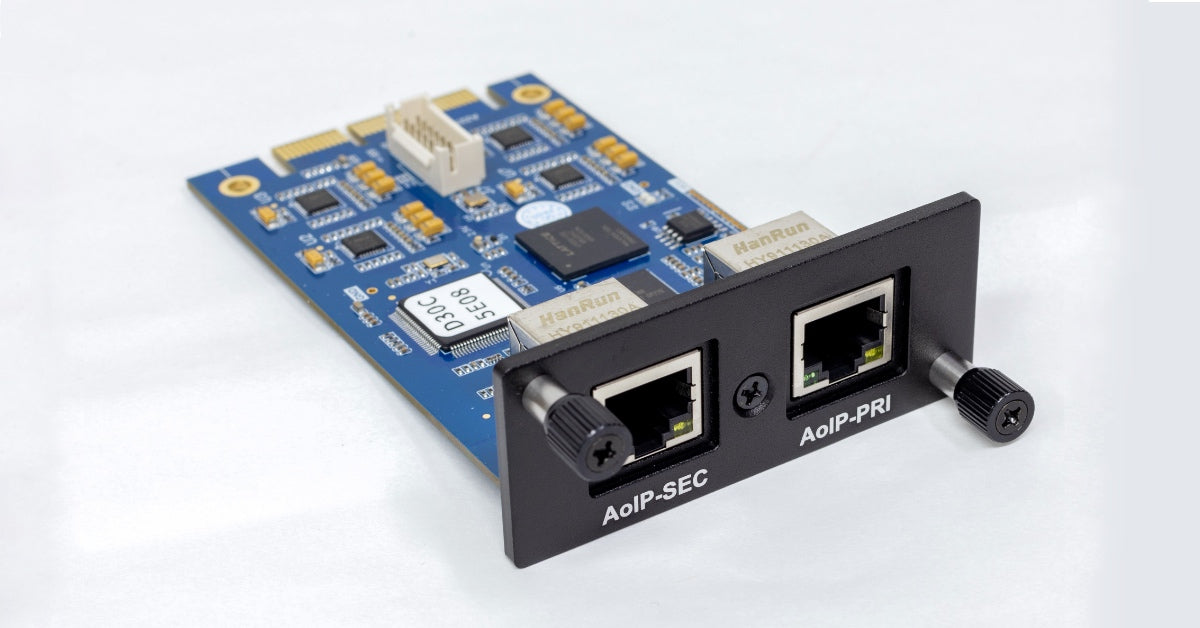

Card-AoIP-96A Expansion Card
•    This expansion card unlocks full Audio-over-IP (AoIP) capabilities — enabling 16-channel routing over a single Ethernet link. Ideal for distributed systems, future upgrades, or professional-grade installations.
•    Supports up to 96 kHz/24-bit when AES67 mode is disabled; standard-compliant 48 kHz when AES67 mode is enabled.
•    For an installer or enthusiast investing in a multi-speaker immersive array (7.1.4, 9.1.6, or beyond), this card offers major flexibility and future-proofing without needing to replace the amplifier.
•    In other words: the card elevates the MCX-800AD from “just eight channels of muscle” into a network-enabled, scalable ecosystem.

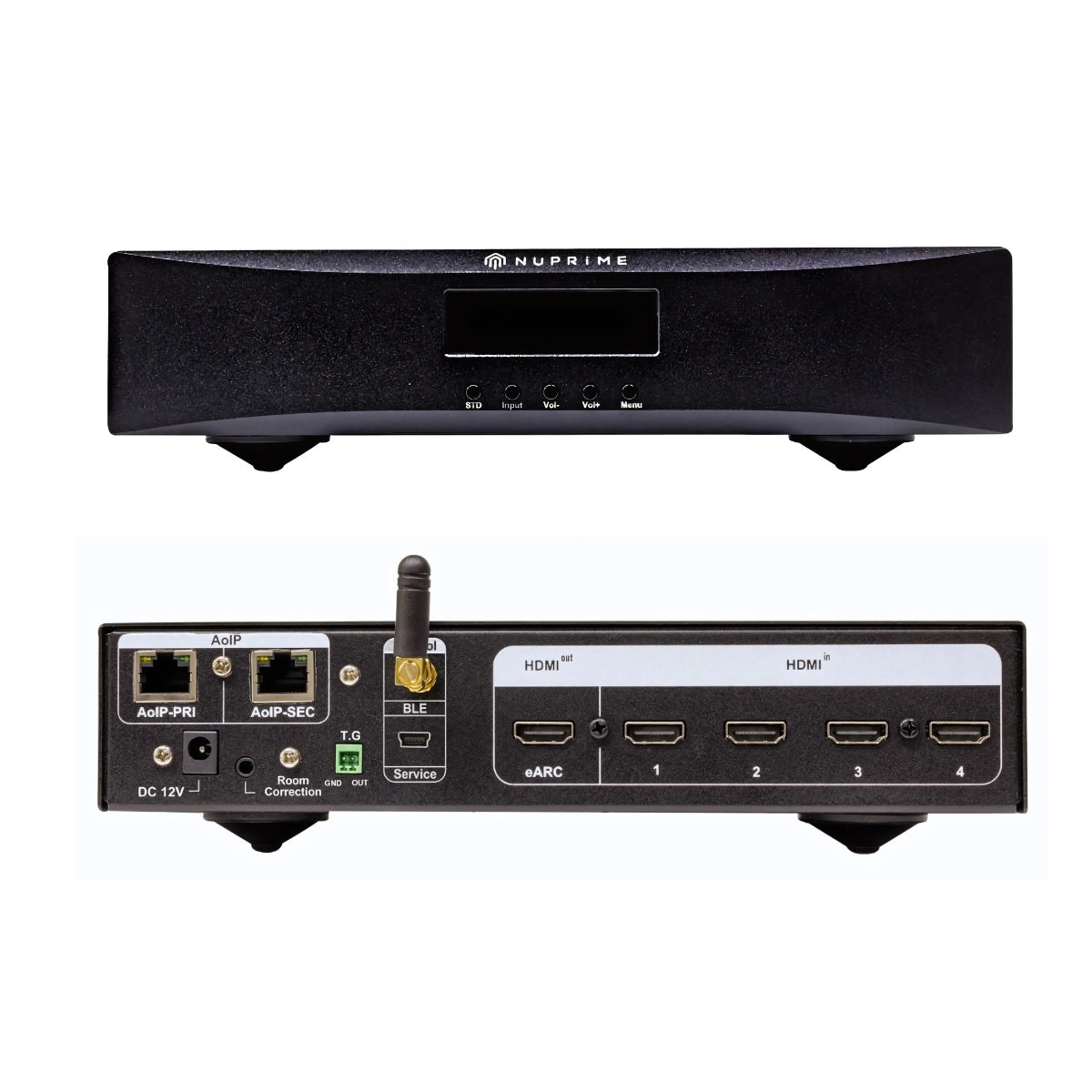

H16-AIP HDMI/AoIP Processor
•    This module converts HDMI immersive audio streams (Dolby Atmos, DTS:X) and outputs them over AoIP (AES67/Dante/Ravenna) for routing into your multi-channel system.
•    Its network-based architecture lets you decouple the video/HDMI domain from the final multi-channel analogue electronics — giving you installation flexibility, lower noise floor, cleaner signal path, and simpler cabling (especially beneficial when driving many speakers or distributed zones).
•    Combined with the MCX/AoIP card, this processor enables a true “networked audio backbone” rather than a conventional AV receiver patch-work. That makes it as much an installation-grade platform as an audiophile system.
•    When you buy this bundle, you’re not merely buying “another AV processor” — you’re investing in an audio-network infrastructure that can scale, adapt, and integrate with high-end multi-channel speaker systems, pro-studio gear, or active speaker arrays.
