Unison Research MAX 2

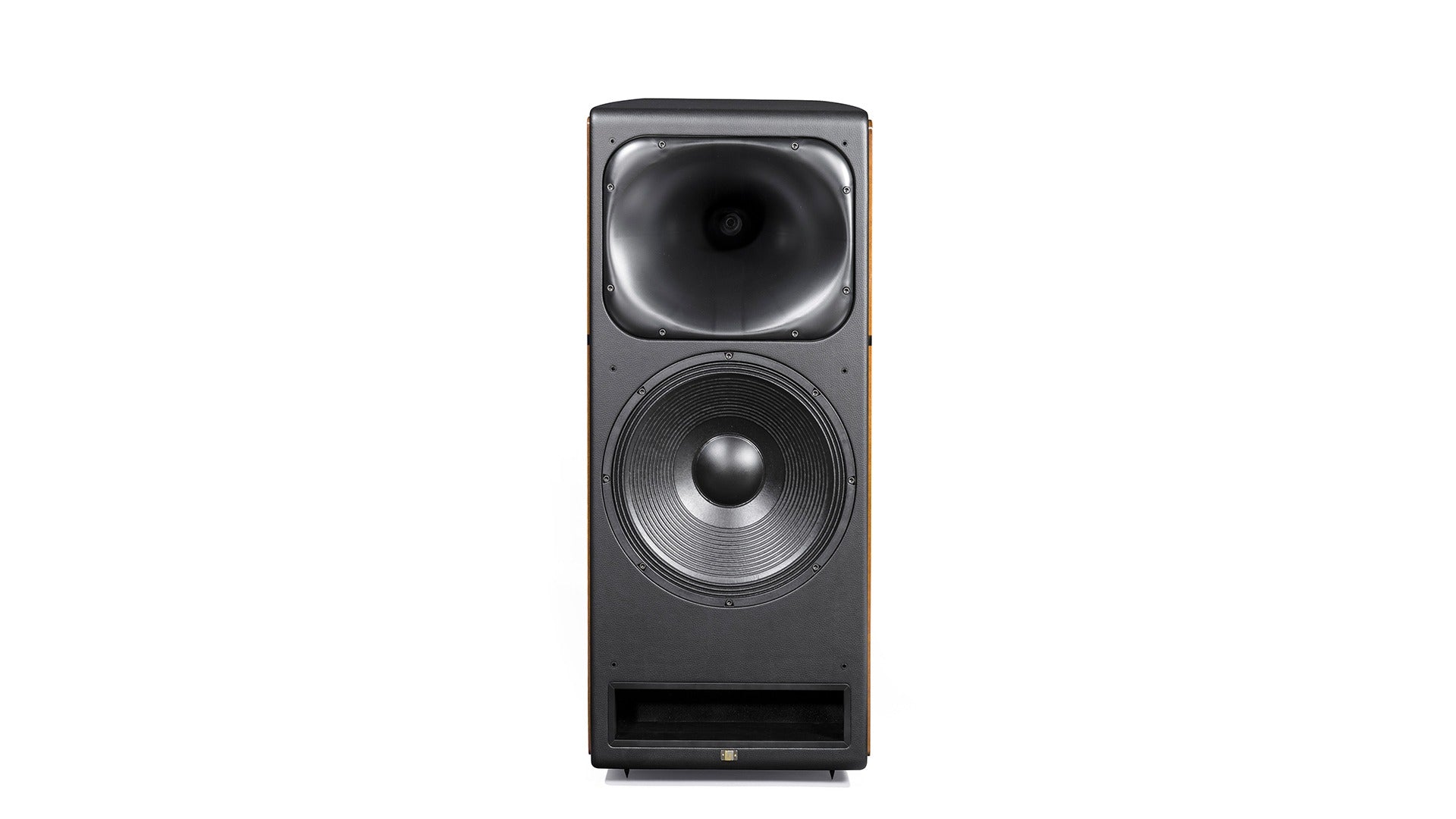

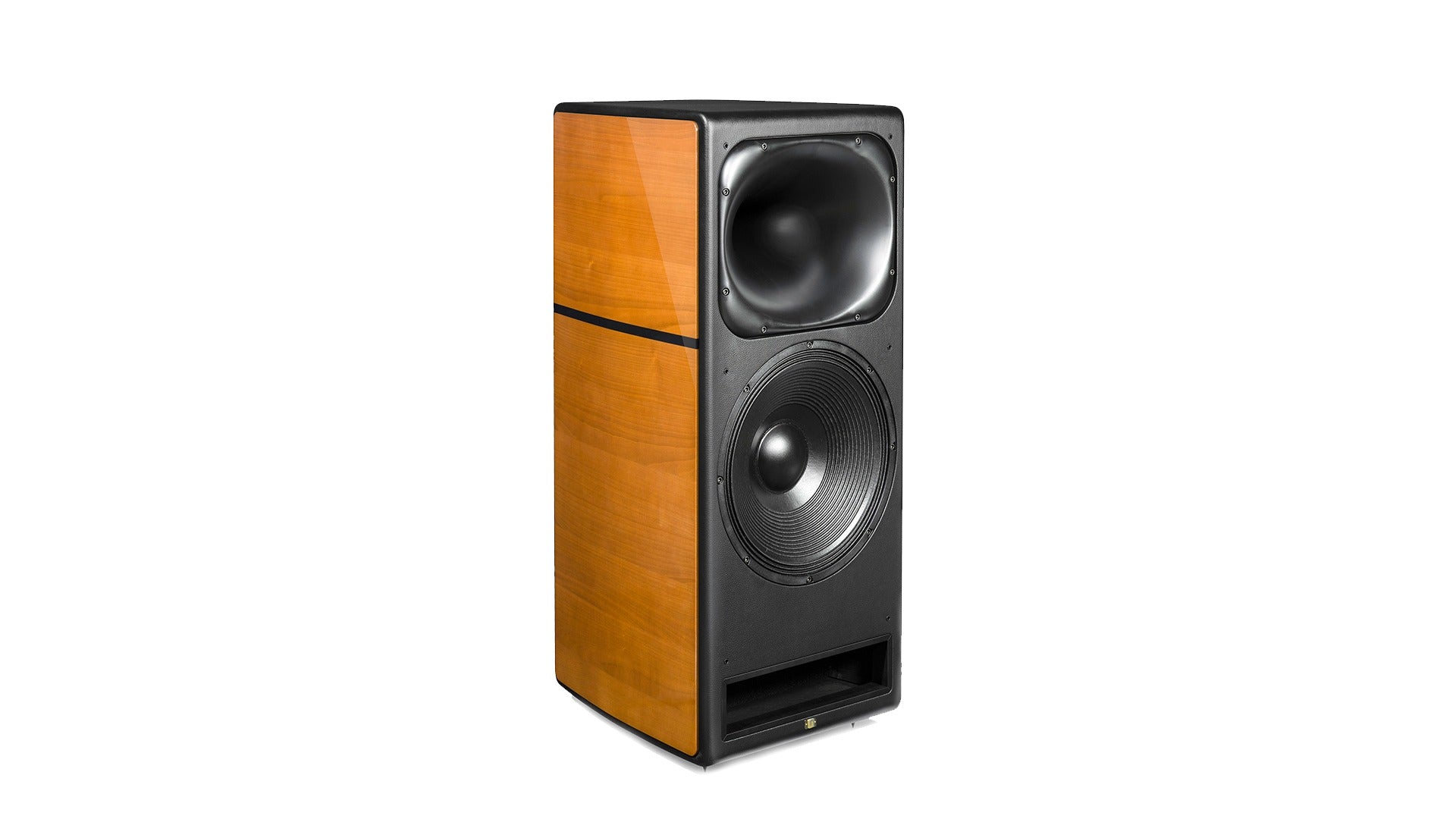

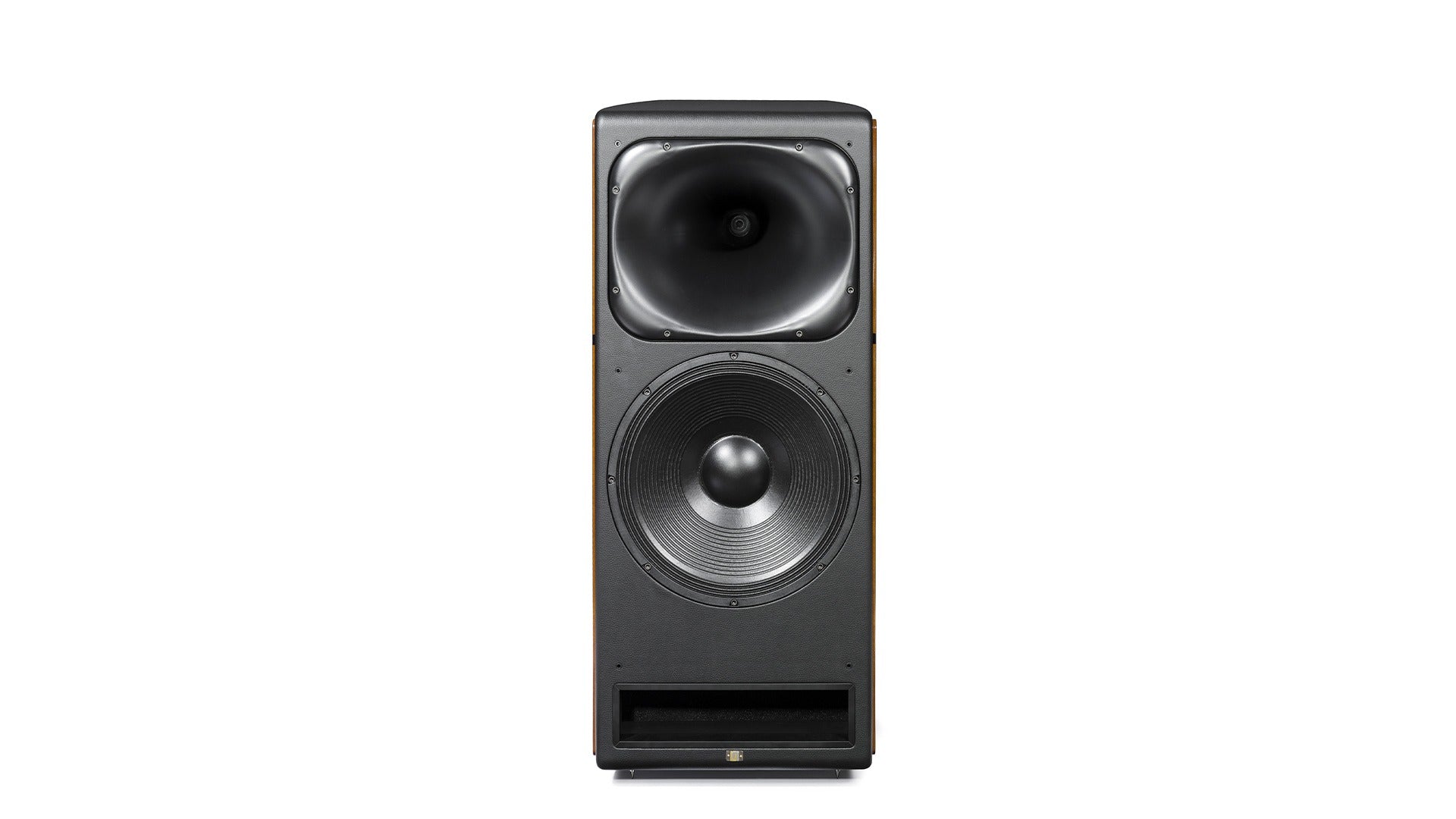

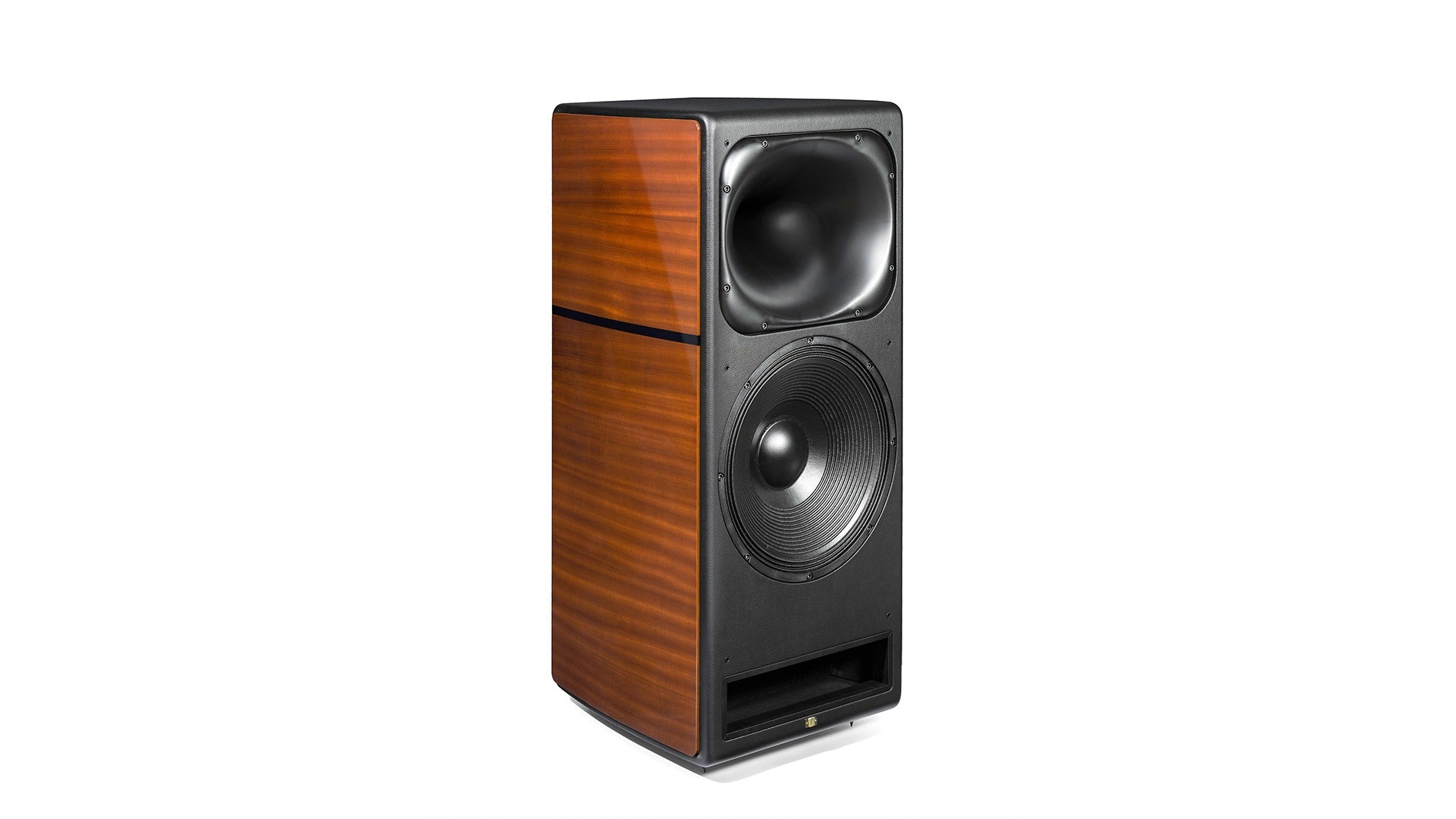

This new Unison Research model is designed to be matched, in particular, to the Unison Research valve amplifiers. For this purpose not only the sensitivity but also the impedance were optimized. The MAX 2 is a two-way floor standing, reflex loaded system, of important size however compact. The reflex ducts is front firing to make easier to place the diffusers in the room. This speaker can also be used as front channel in home theater systems. With two pairs of  diffuser (front and rear) you get an high-impact home theater system that does not require a center channel or sub-woofer.

This is undoubtedly a definitive loudspeaker with: full extension of the low frequency, capable of reproducing high sound level, not too difficult to fit into the environment, with a clear and defined midrange and high quality in high frequency reproduction.

Speakers

The 15" woofer (Italian production) is equipped with a diaphragm made ​​from a dough of vegetable and carbon fibers, the moving coil has a diameter of 100 mm, it has two layers (one internal and one external) with an aluminum former. There are also two metal  rings which control of the variation of the magnetic flux to reduce the  harmonic and intermodulation distortion  to a widely inaudible level.

The magnet is neodymium made. The external suspension is made of fabric composed of 51% cotton and 49% polyester, shaped as a triple wave and damped with a newly developed product. The basket is die cast for maximum stiffness.

This woofer can dissipate more than 800 watts of continuous power, much more than they will have to handle under actual conditions of use. This guarantees the complete absence of any phenomenon of thermal  compression.

The compression driver (Italian production)  has an aluminum diaphragm with a 74 mm aluminum coil and aluminum windings to cancel the stresses and deformations caused by temperature. It is loaded with an elliptical Constant Coverage ESS horn with wide dispersion (60°x50°) made of  moulded polyurethane. Incredibly rugged, linear and with a natural sound and free of any nasality.

The directivity index  is constant within plus or minus 0.85 dB up to more than 12kHz.

Crossover

Electrical slopes of the cross-over are asymmetric (6/12 dB/octave). The cross-over is made ​​with very high quality components. The inductors are air wound  with OFC copper wire, Mundorf capacitors and MOX resistors have been carefully selected. The cross-over PCB is made by SET (Italy).

Particular care has been taken to smooth the impedance curve to reduce the effect of the cables and of the damping factor of the amplifier (tube or solid state).  The electrical impedance is in compliance with DIN 45500 for nominal 8-ohm speakers. A switch regulates the roll off of the higher frequencies.

Cabinet

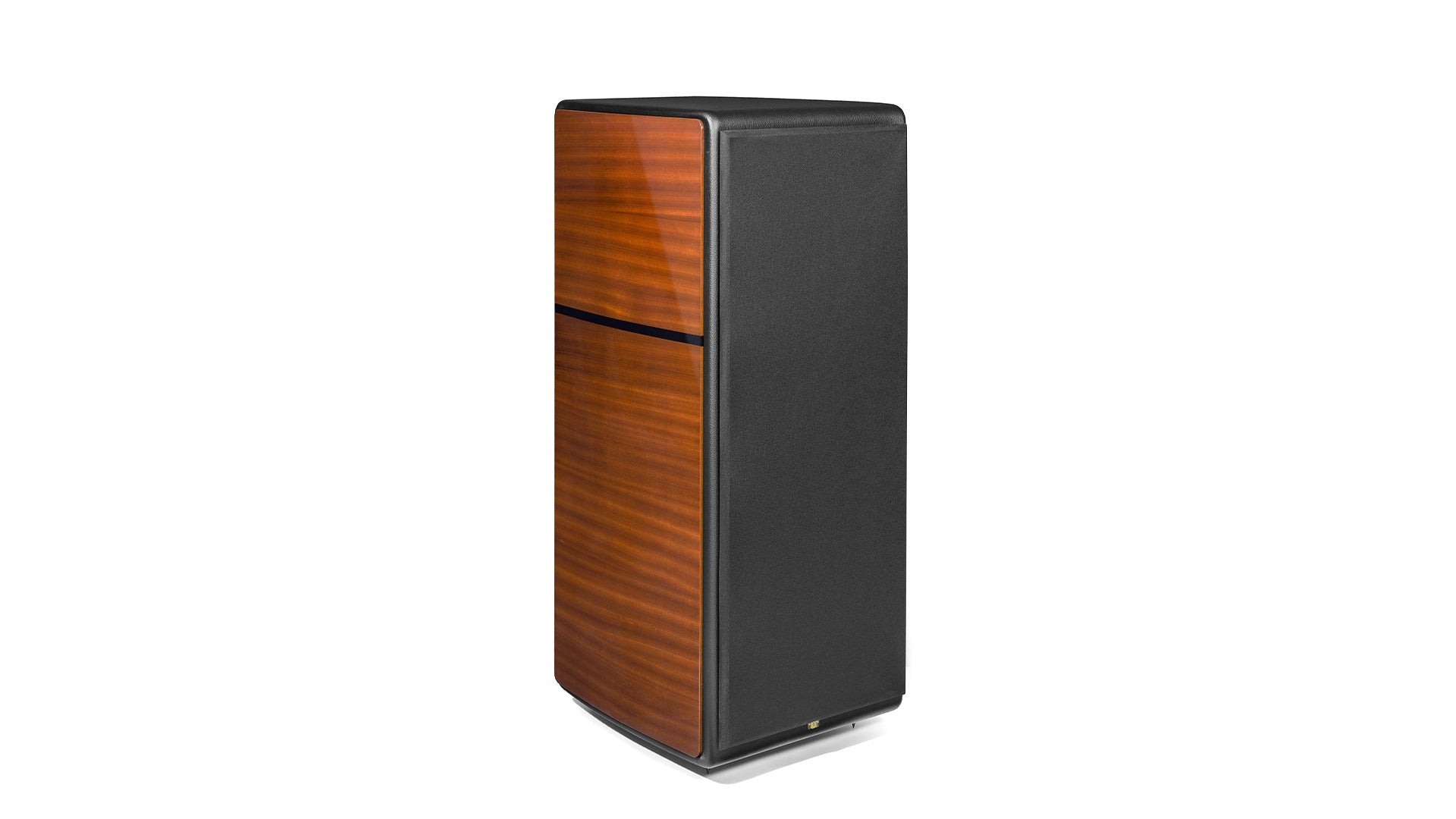

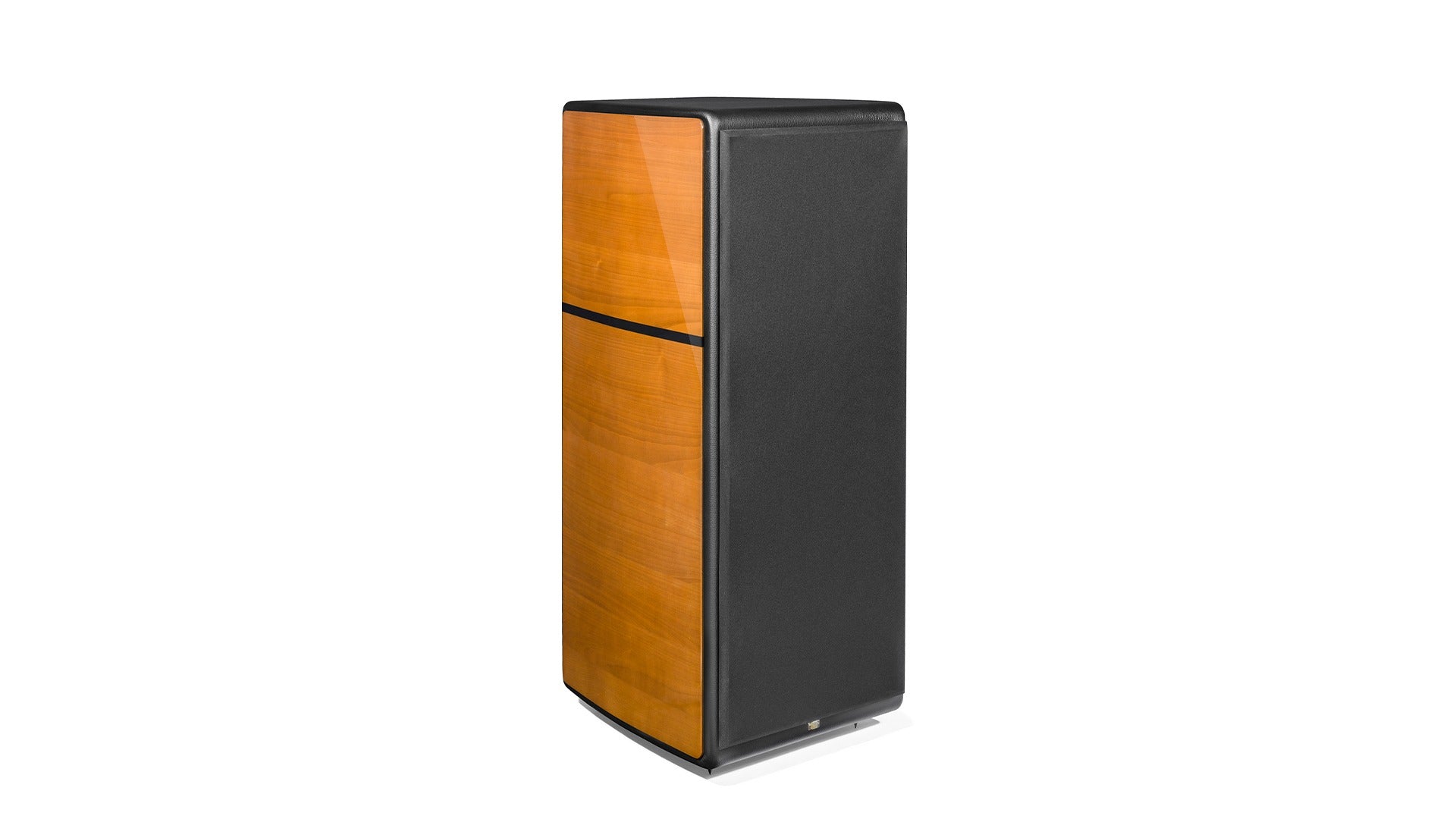

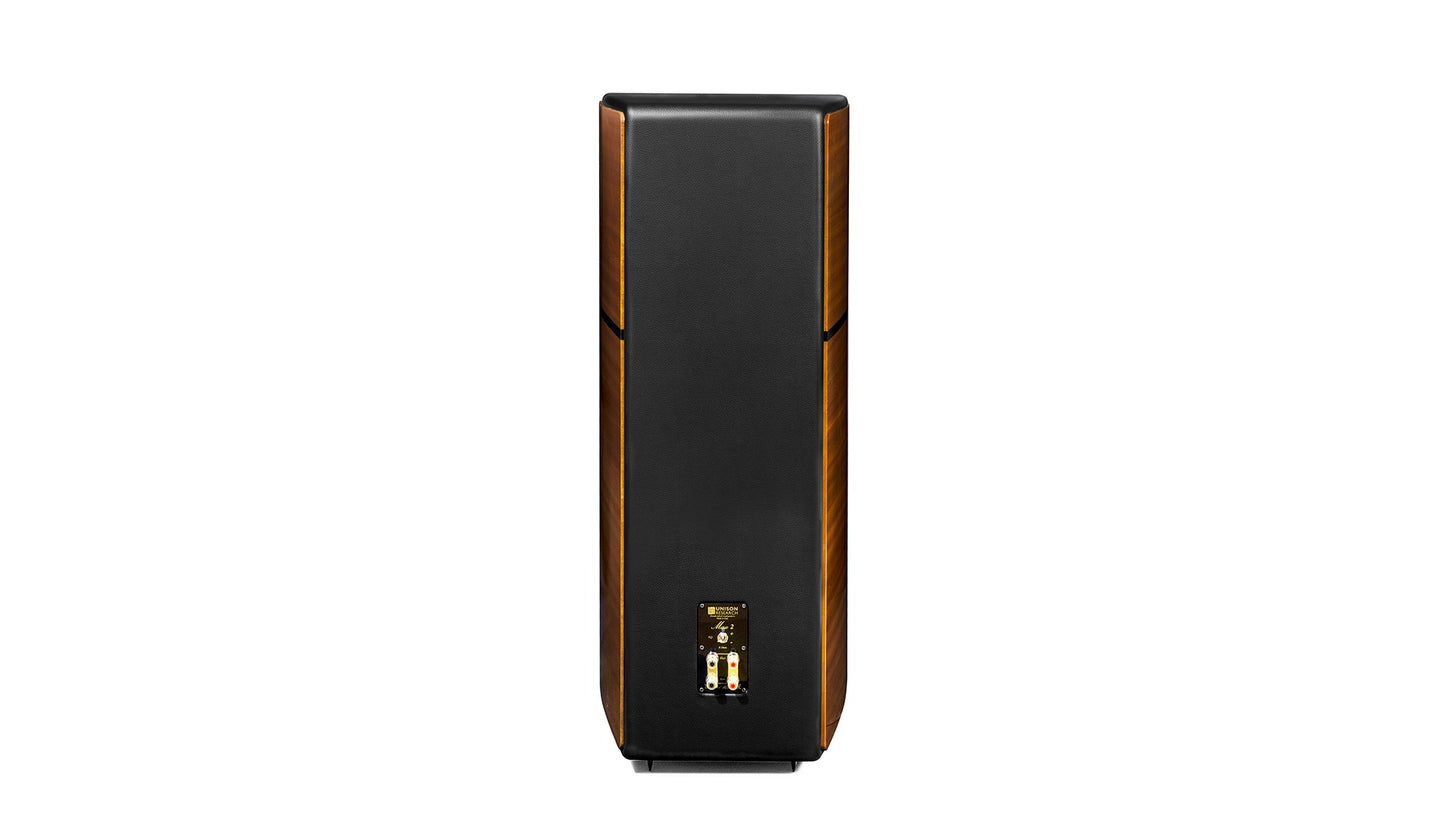

The cabinet is made of MDF, 25 mm thick, veneered in natural wood and is equipped a front reflex port. The structure is further stiffened by internal bracing.

The internal volume of the cabinet (about 130 liters) is coated with  open cell polyurethane with a pyramidal profile.

The front panel,  MDF 30 mm thick, is covered in synthetic leather. The speakers are mounted flush with the panel and the inner side of the panel is properly milled to avoid coloration in the midrange.

In essence, despite being a diffuser made ​​with components also suitable for professional use, the cabinet has been built according to the dictates of the HiFi. The front panel has  rounded edges without protrusions of any kind as not to "ruin" the impulse response with harmful border diffraction.

Specifications

System: Floor standing - front firing Reflex

Loudspeakers: 1 x 15” woofer

1 x 1.4 “ compression driver with titanium diaphragm

Numbers of ways: 2 way

Frequency Response: 30-20000 Hz

Cross-over: Woofer low-pass 12 dB

Tweeter high- pass 6 dB

Crossover Frequency 800 Hz

Power: 500 watt RMS

Amplifier: from 10 to 200 Watt RMS or more – without clipping

Sensibility: 96 dB @2.83Vrms/1 meter

Nominal impedance: 8 ohm ( 7.4 ohm min )

Size: 101h x 43,5w x 54d cm

Weight: 60 Kg each
