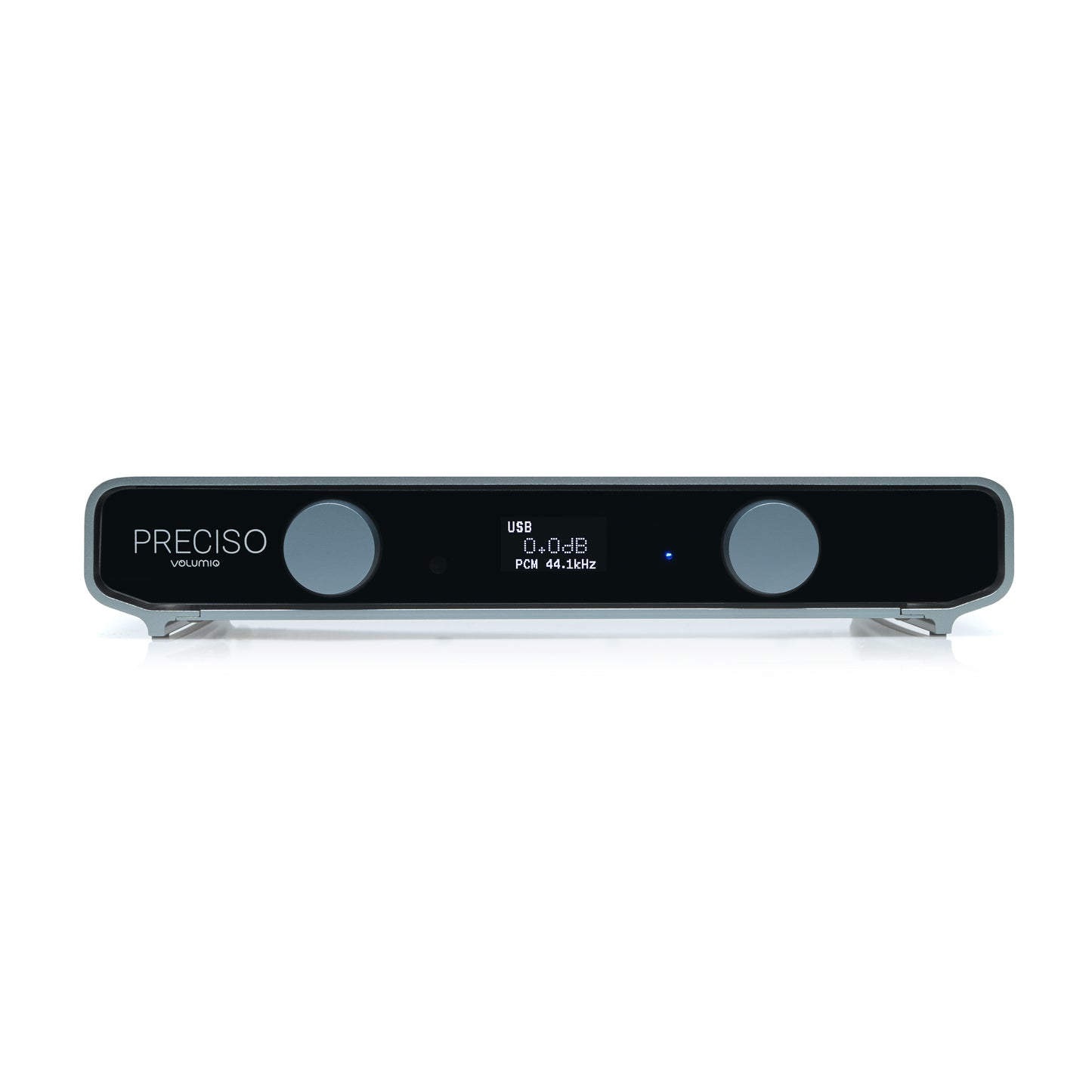

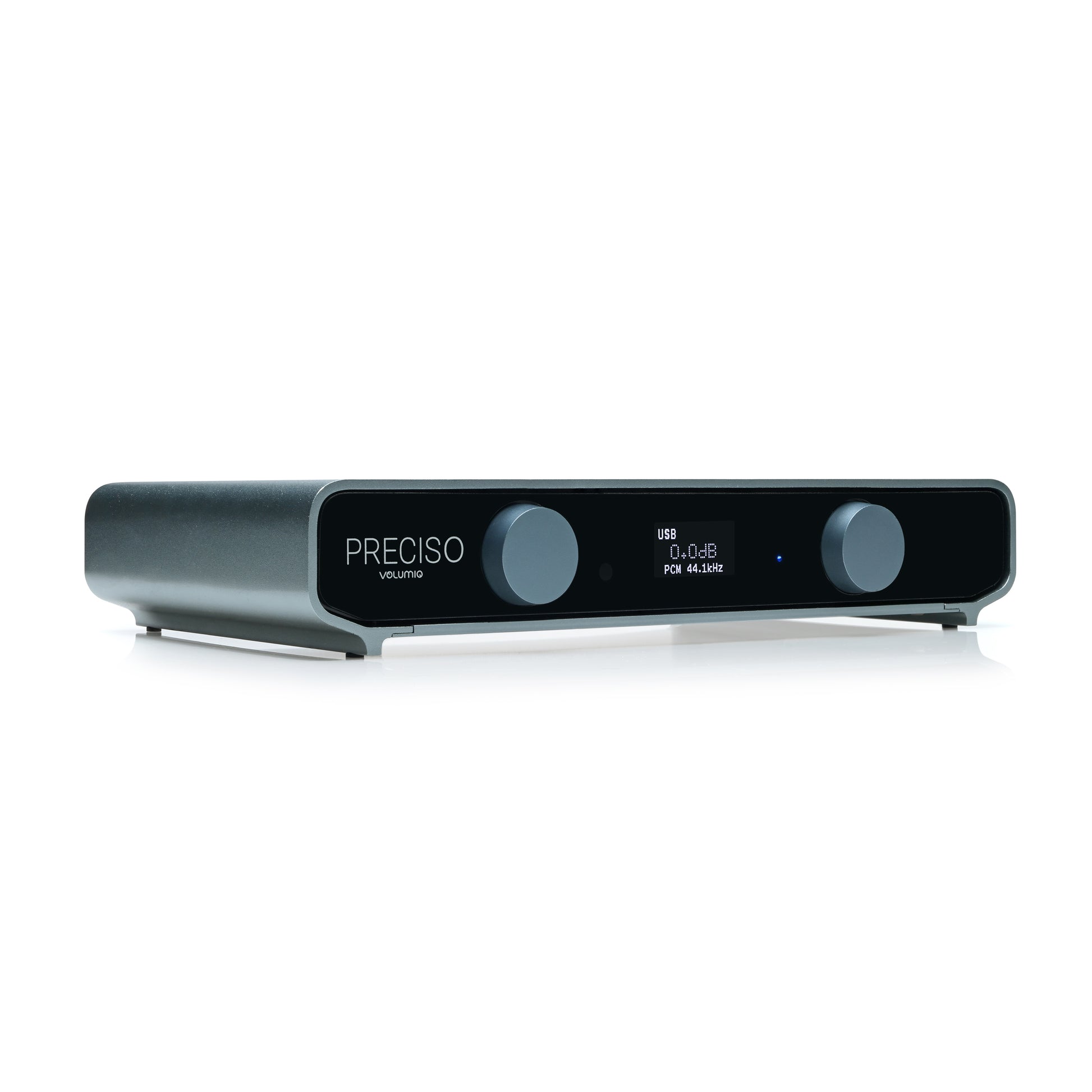

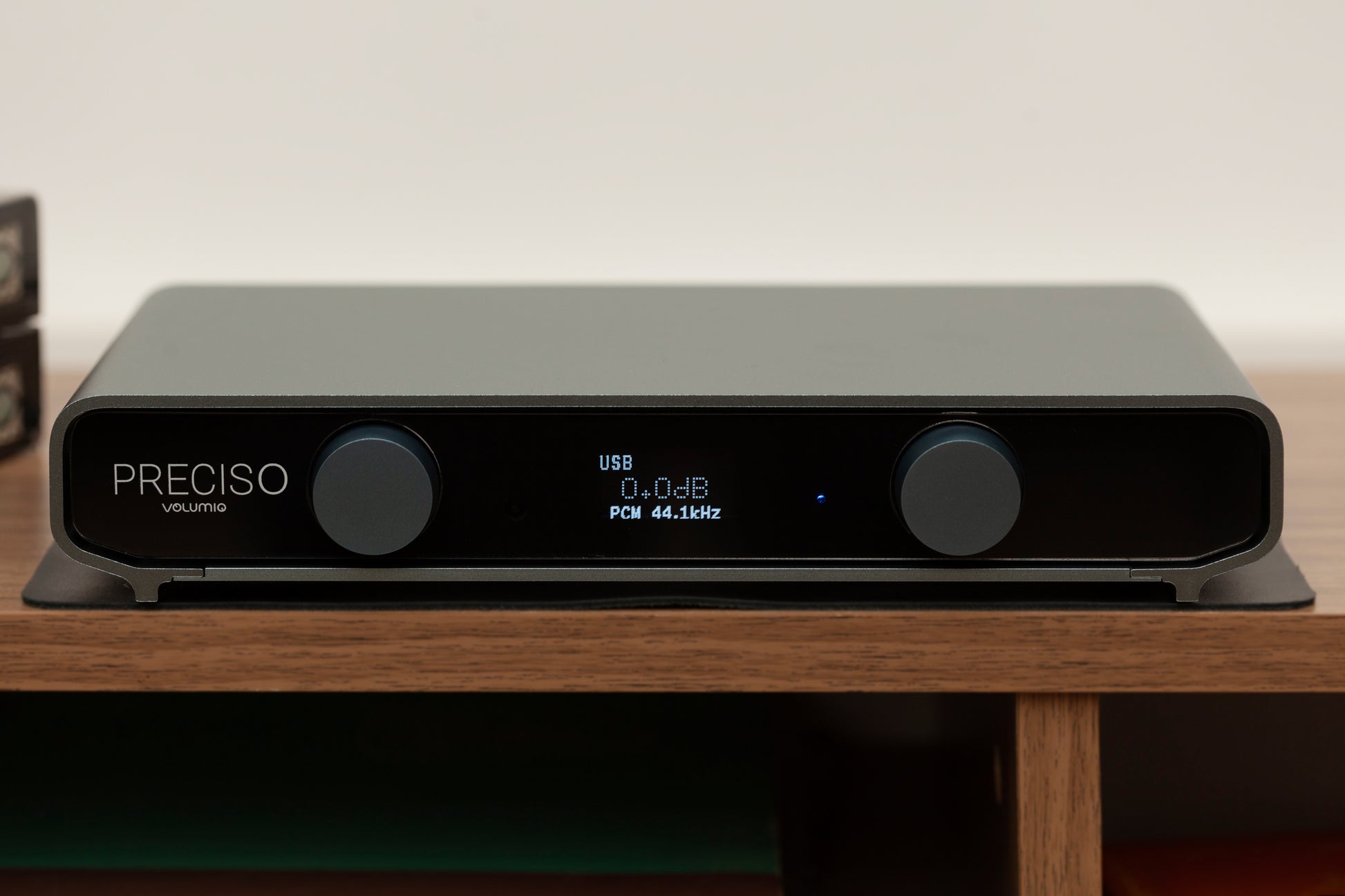

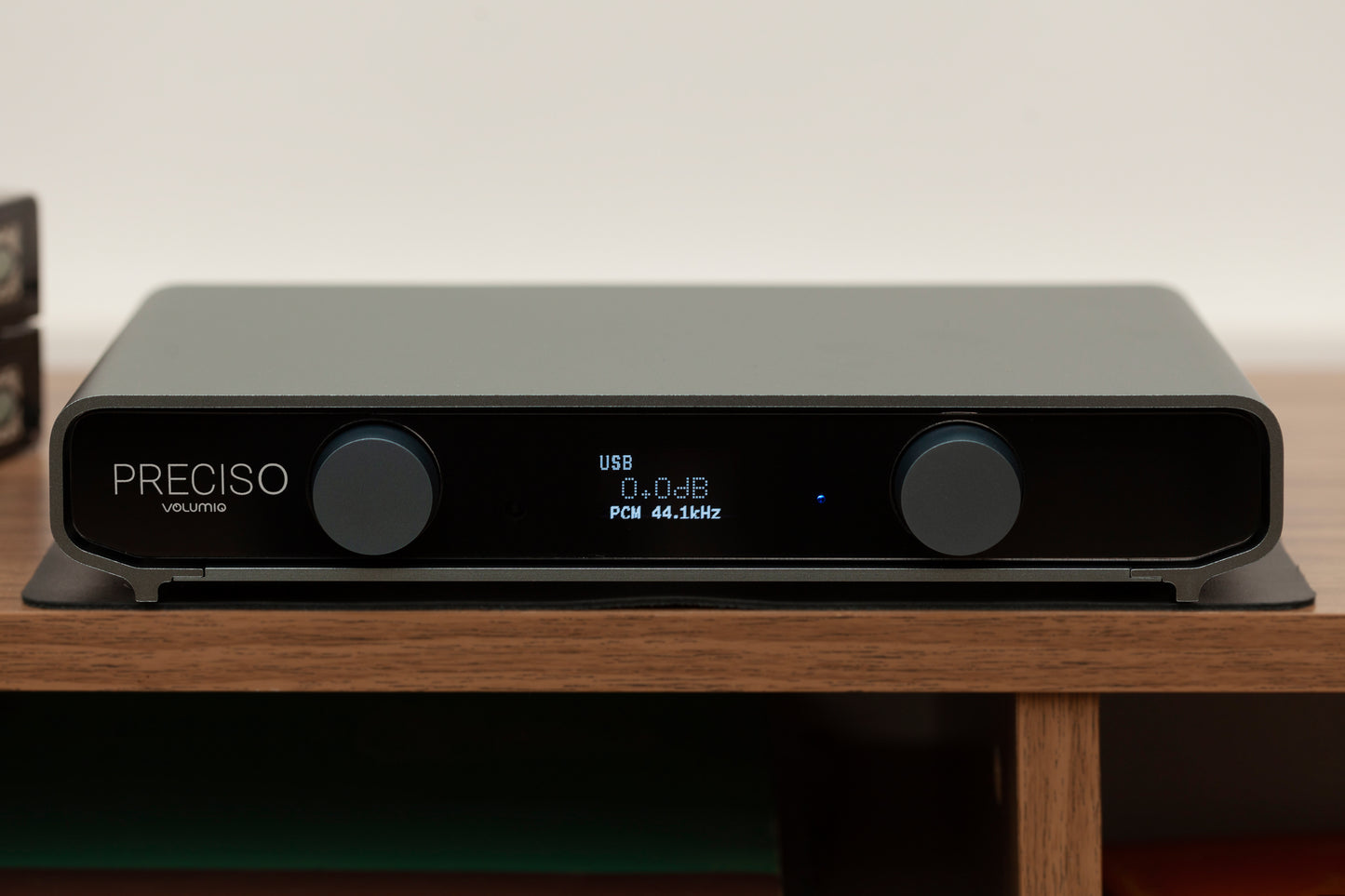

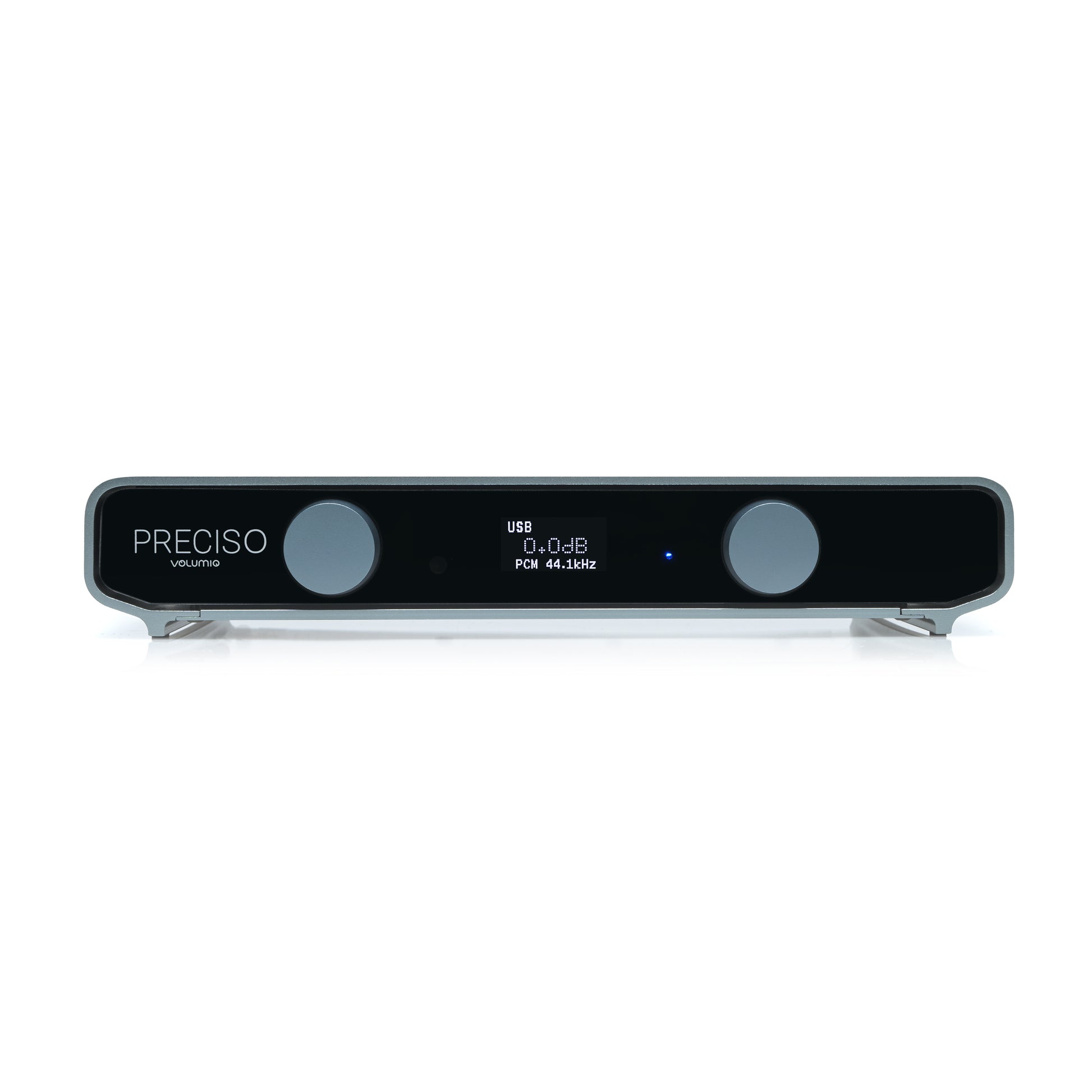

Volumio Preciso

Ultra-precise, high-performance DAC. Featuring dual mono SABRE DACs, dual linear power supply, and MEMS clock for ultimate audio purity.

THE ULTIMATE EXPRESSION OF PRECISION

Preciso is Volumio’s ultimate expression of what a DAC can and should be. It is the result of obsessive engineering, relentless refinement, and a singular goal: to deliver the purest, most precise audio signal without breaking the bank. Preciso is the ultimate expression of everything we've learned at Volumio in crafting award-winning digital audio players.

WHY PRECISO?

Named after the Italian word for precise, Preciso lives up to its name through uncompromising engineering and sonic accuracy. It features dual SABRE ESS ES9039Q2M DACs in a true dual mono design, eliminating crosstalk for a wider, deeper, and more natural soundstage. Its hyper-symmetrical architecture ensures precise channel isolation and lifelike imaging, while a THD+n of -122.5 dB reaches the limits of modern audio test equipment for truly transparent sound. Enhancing its versatility, Preciso also includes an integrated Hardware Gain Control, eliminating the need for an external pre-amplifier when paired with a fixed-gain power amp. This gain control allows fine-tuned signal adjustment from 0.0 dB to -99.0 dB in precise 0.5 dB steps, offering both convenience and high-fidelity performance in a single, streamlined solution.

HYPER-SYMMETRICAL DUAL MONO DACS

Dual ESS ES9039Q2M in perfectly mirrored, isolated circuits for absolute channel separation, lowest crosstalk and extreme optimization of the DACs signal path.

DUAL LINEAR POWER ARCHITECTURE

Independent power regulation for analog and digital paths ensures a noise-free signal.

BEST IN CLASS WHERE IT COUNTS

Carefully selected components like a precision MEMS clock, premium OPAMPs, and an ASIC USB interface ensure clean, stable performance, while built-in Hardware Gain Control offers precise 0.5 dB step adjustment, removing the need for an external preamp.

HIGH-PRECISION DAC ARCHITECTURE WITH RIVO+ COMPATIBILITY

Preciso features a dual internal linear power supply, with separate regulation for the analog and digital sub-system. This complete isolation reduces interference, lowers the noise floor, and enhances dynamic range.

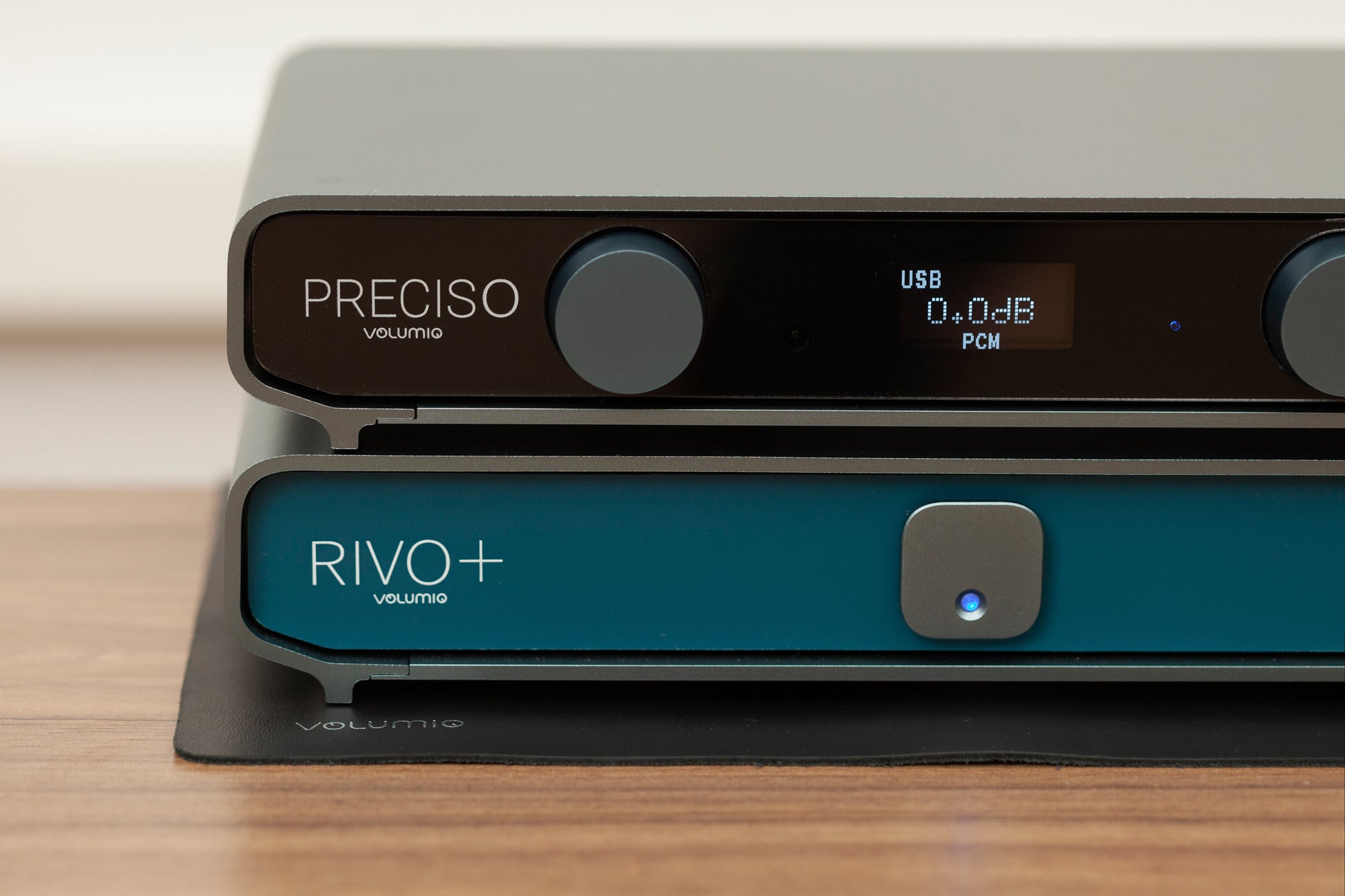

When paired with RIVO+ , Rivo or any dedicated transport, Preciso becomes part of a fully optimized digital chain. Preciso uses the same dedicated USB ASIC found inside RIVO+. This ensures pristine data transfer, precise clocking, and optimal analog performance. Preciso can be also used as a Pre-Amp with hardware gain control for direct integration with power amplifiers.

Specifications:

Digital USB Input: Up to PCM 768kHz/32bit and DSD512

Digital S/PDIF Optical Input: Up to PCM 192kHz/24bit

Digital S/PDIF Coaxial Input: Up to PCM 192kHz/24bit

Digital I2S over HDMI Input: Up to PCM 768kHz/32bit and DSD512

Stereo Analog Balanced Output: Up to 4 Vrms

Stereo Analog Unbalanced Output: Up to 2 Vrms

Input Power: 5V DC / 2A

Input Power Connector: Barrel Jack 5.5mm (outer diameter) / 2.1mm (inner diameter)

Input Power Polarity: Positive

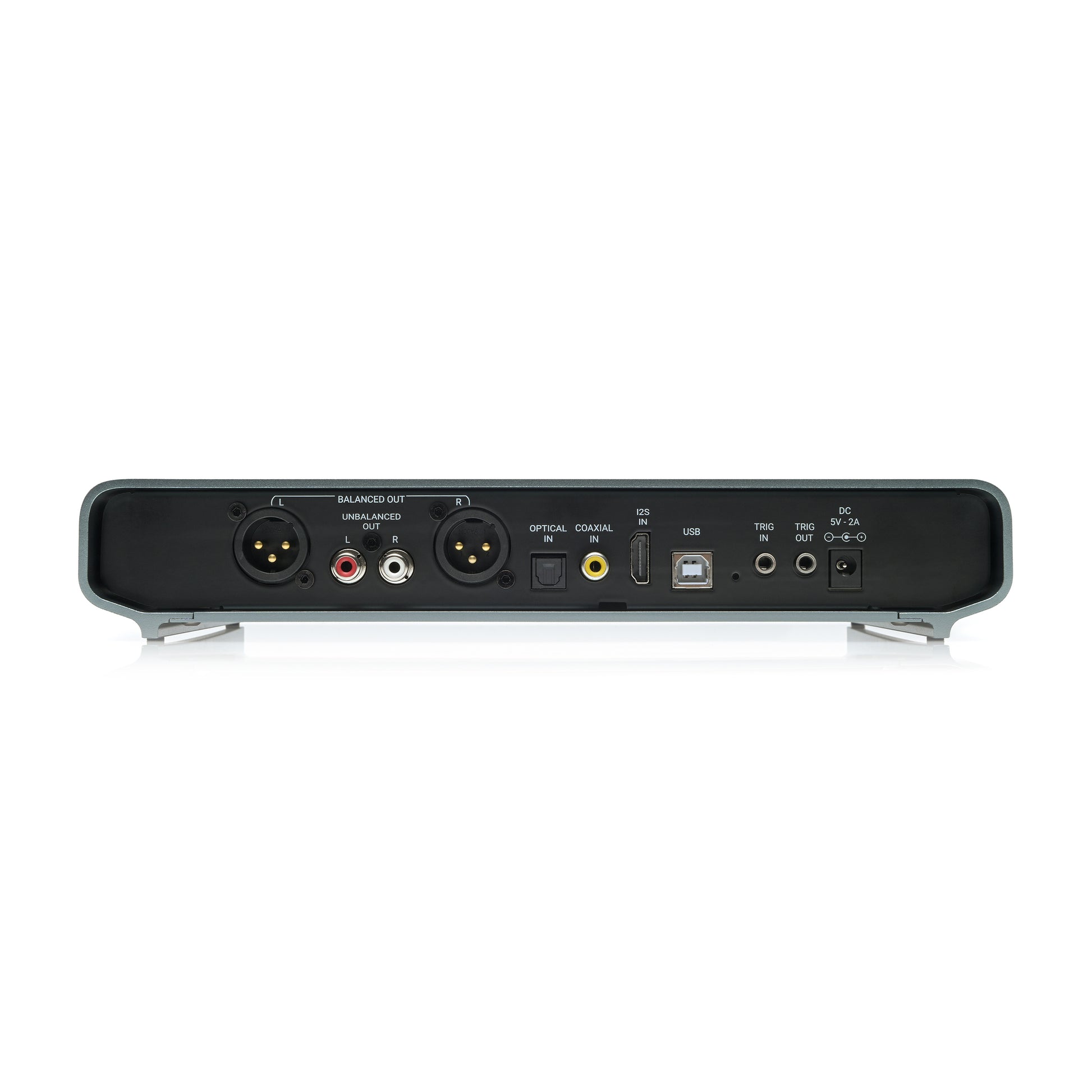

Trigger In Port: 3.5mm jack, positive on tip

Trigger Out Port: 3.5mm jack, positive on tip

USB Input: USB 2.0 Type-B connector

S/PDIF Coaxial Input:  RCA connector

S/PDIF Optical Input: TOSLINK connector

Stereo Unbalanced Output: RCA connectors

Stereo Balanced Output: XLR connectors

Designer: Design Narratives Ltd.

Weight: 2.25 kg

Dimensions: 27x15x5 cm
