About the Volumio Lineo5
Pre-Order, expected stock date November 6th.
Volumio Lineo5 replaces the stock switching adapter of a Volumio streamer, transport or DAC with a low-noise linear power supply. Bought from HiFi Boutique, an authorized Volumio dealer, it comes with a USA-based warranty and local dealer support from HiFi Boutique.
Sensitive digital circuitry and clocks benefit from a steadier source of current, and Lineo5 is Volumio's own answer for one component at a time.
What Lineo5 delivers

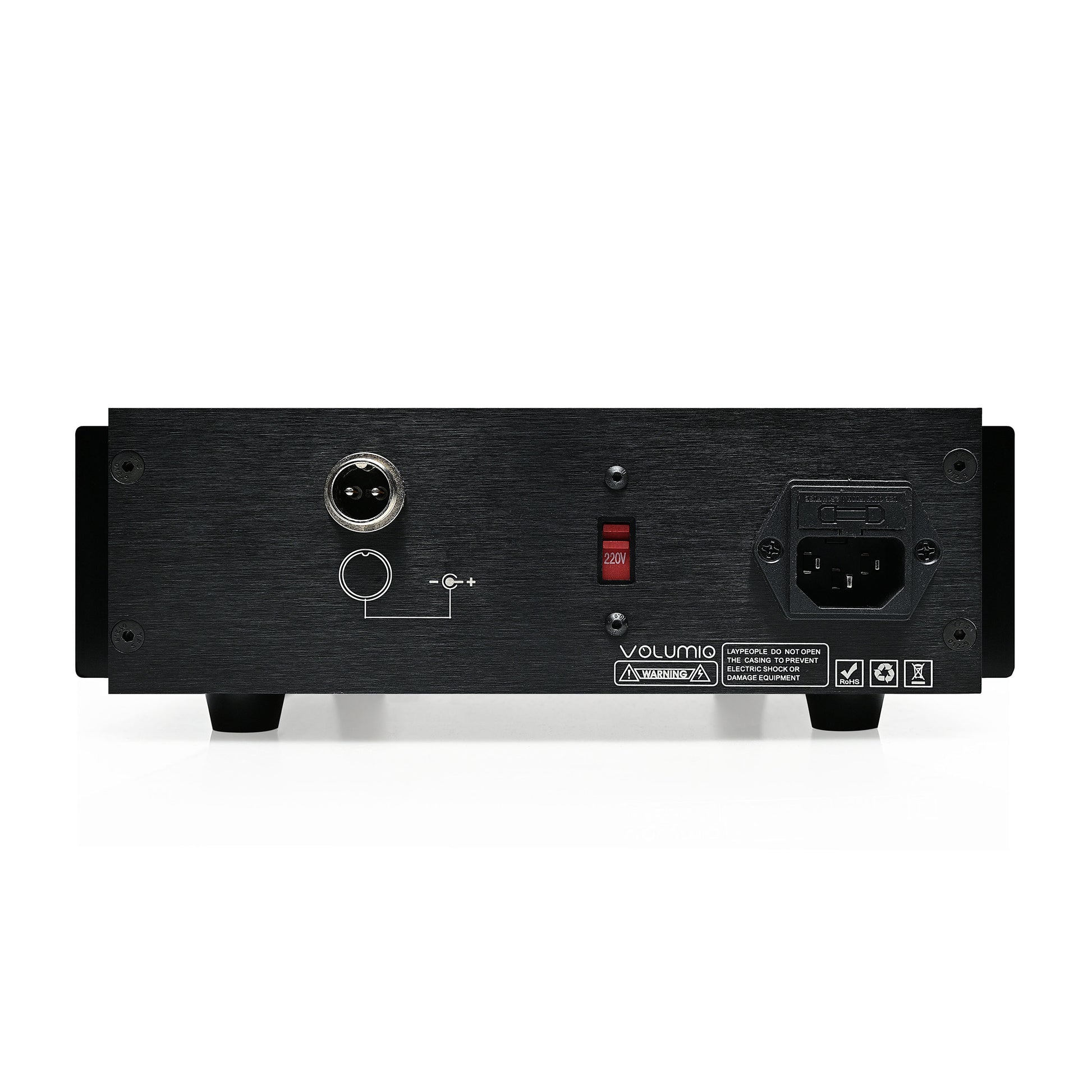

Lineo5 supplies 5 V DC at up to 5 A through a 5.5 × 2.1 mm barrel, tip positive, the same connector the Volumio components use. Input is switchable between 110–120 V / 60 Hz and 220–240 V / 50 Hz, and maximum consumption is 90 W at full load.
Chassis and accessories

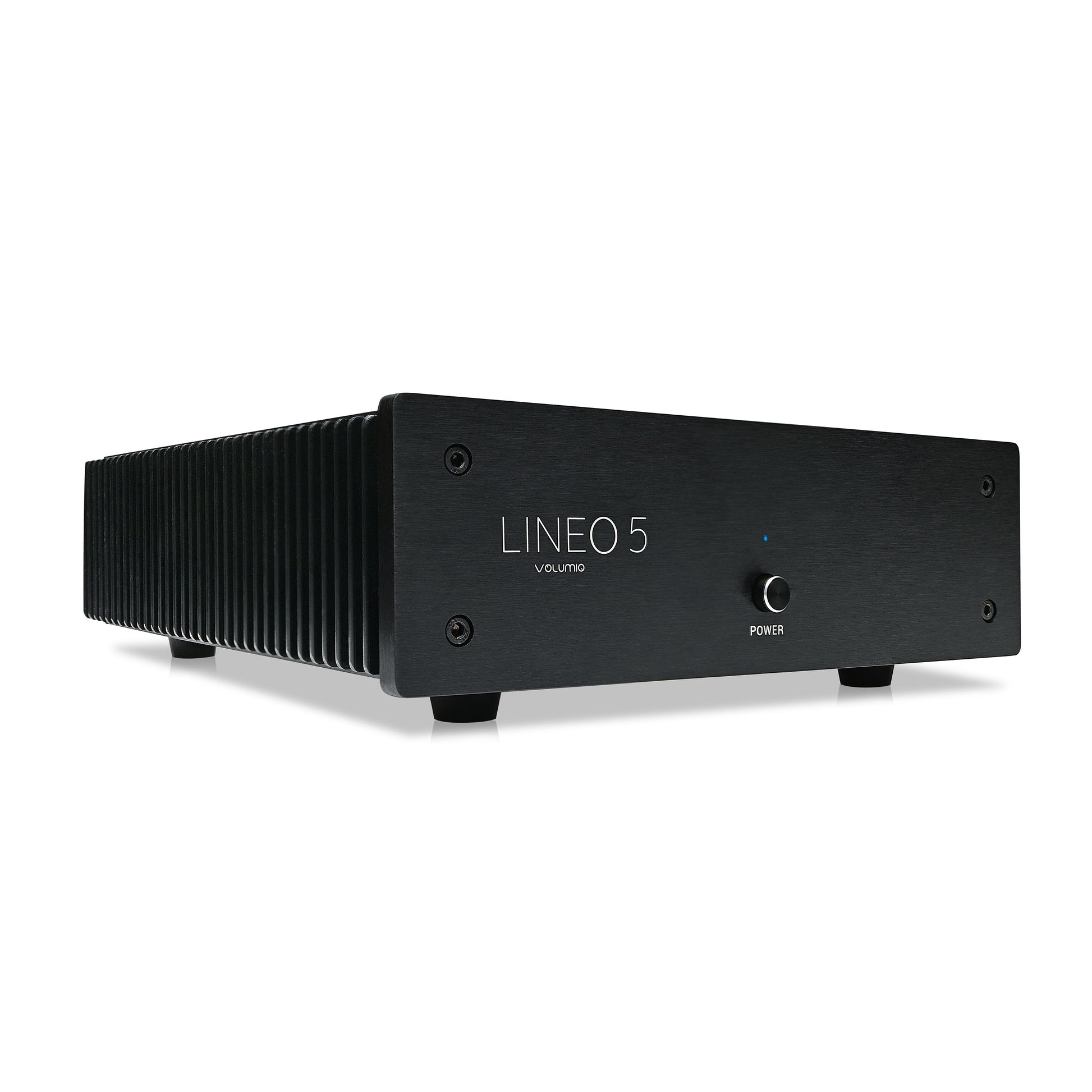

The linear circuit lives in an aluminum chassis with integrated side heatsinks. In the box you get Lineo5, AC power cables for the US, EU, UK and AU/NZ, and an output cable to the 5.5 × 2.1 mm barrel.
Lineo5 or Lineo5 Duo
Lineo5 has one output and powers one component at up to 5 A. If you run a transport and DAC together, such as Rivo Plus and Preciso, Lineo5 Duo powers both from one chassis with two independent outputs at up to 4 A each.
Why buy your Lineo5 from HiFi Boutique
HiFi Boutique is an authorized Volumio dealer in the US. Your Lineo5 comes with a USA-based warranty, so warranty service is handled here in the USA, and you get local dealer support from HiFi Boutique for setup, pairing and questions after the sale. Free US delivery, tax included.
Browse the full Volumio range to compare streamers, transports, DACs and power supplies.
Complete your system
-
Volumio Rivo Plus
ViewRegular price $1,599.00 USDRegular price -
Volumio Rivo
ViewRegular price $1,299.00 USDRegular price -
Volumio Preciso
ViewRegular price $999.00 USDRegular price -
Volumio Primo Plus
ViewRegular price $1,499.00 USDRegular price -
Volumio Primo V3
ViewRegular price $999.00 USDRegular price -
Not sure which components match your speakers?
Contact usRaymond can help you choose components that suit your system and the music you love.
Details
Complete Specifications
Complete Specifications
| Inputs |
|
|---|---|
| Outputs |
|
| Power supply | Linear; 90 W maximum consumption at full load |
| Dimensions (mm) | 271 × 227 × 70 mm (L × W × H) |
| Dimensions (in) | 10.7 × 8.9 × 2.8 in (L × W × H) |
| In the box |
|
| Pairs with |
Connections & Compatibility
Connections & Compatibility
Compatible Volumio components
Lineo5 works with the Volumio Rivo, Rivo Plus, Volumio Preciso, Primo V3, Primo Plus and the earlier Primo V2. It also suits the Rivo Black Edition and the Rivo Plus Special Edition, which share their base models' electronics.
FAQ
FAQ
Which Volumio products does Lineo5 work with?
Rivo, Rivo Plus, Preciso, Primo V2, Primo V3 and Primo Plus.
Can it power two components?
No. Lineo5 has one output. Lineo5 Duo has two independent 5 V outputs.
Shipping & Warranty
Shipping & Warranty
Warranty: 2-year Volumio warranty; USA-based warranty service and support
HiFi Boutique ships within the United States only. Orders ship within 2 business days, with a tracking number. See the shipping policy.
